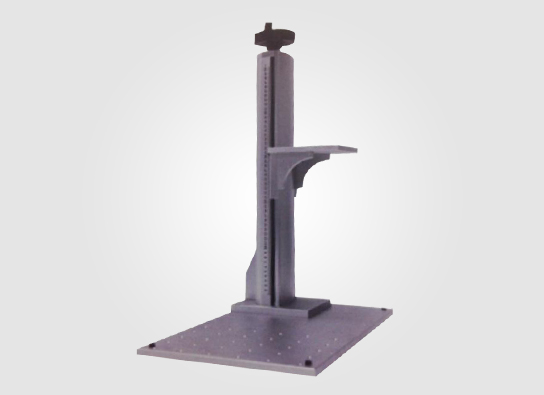

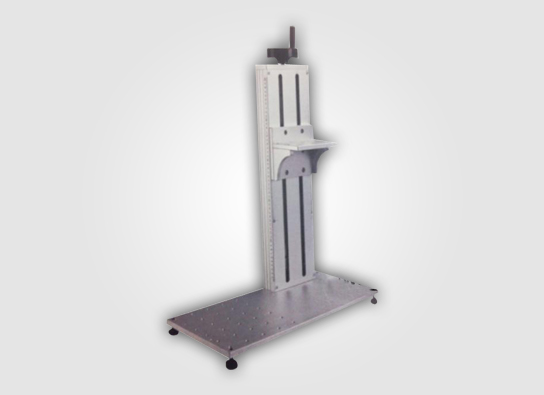

| Model |
STA-Z-005 |
| Outline |
350x560x600 mm |
| Travel |
350 x 560 mm |
| Weight |
18 Kgs |
|
|
|
| |
|
|

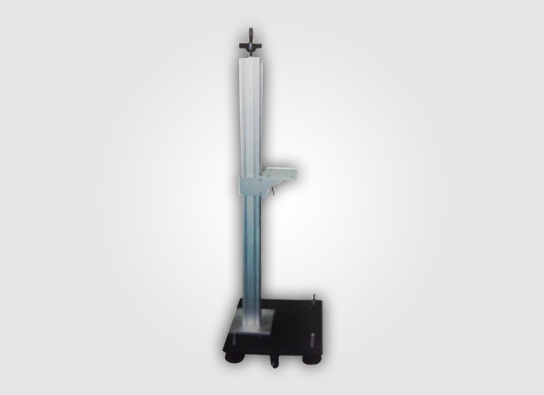

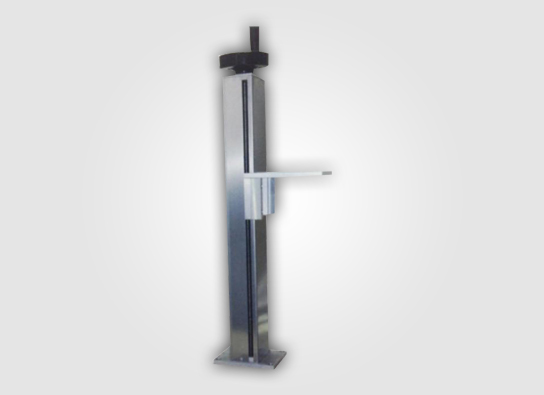

| Model |
STA-Z-006 |
| Outline |
450x460x1350 mm |
| Travel |
600 ~ 1000 mm |
| Weight |
40 Kgs |
|
|
|
| |
|
|
| Model |
STA-Z-001 |
| Outline |
600x100x600 mm |
| Travel |
300mm |
| Weight |
12 Kgs |
|
|
|
| |
|
|
| Model |

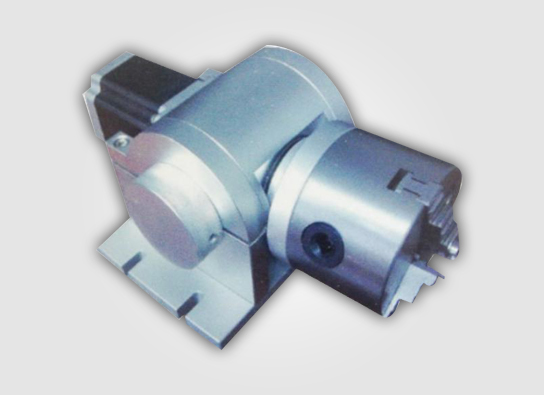

STA-R-001 |
| Application |
D 80 Rotary |
| Pitch angle |
360 |
| Size of Chuck |
80/100/120 mm |
|
|
|
| |
|
|

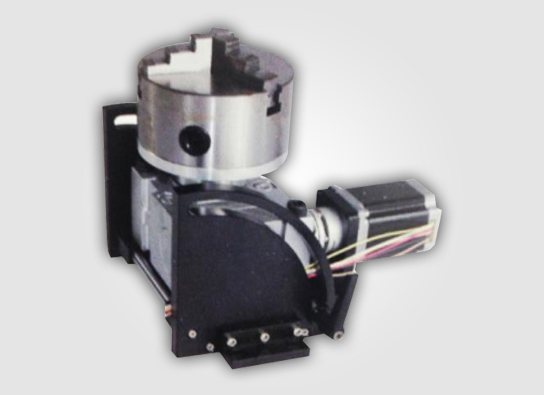

| Model |
STA-R-002 |
| Application |
Rotary |
| Pitch angle |
90 |
| Size of Chuck |
80/100/125 mm |
|
|
|
| |
|
|
| Model |

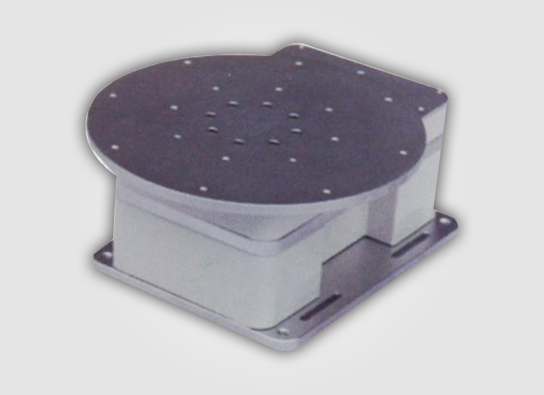

STA-RA-002 |
| Application |
Rotary Table |
| Dimensions |
350x300x160 mm |
| Drive |
Step / Servo |
| Weight |
10 Kgs |
|
|
|
| |
|
|
| Model |
STA-Z-002 |
| Outline |
60x170x600 mm |
| Travel |
300 Kgs |
| Weight |
10 Kgs |
|
|
|
| |
|
|
| Model |
STA-Z-004 |
| Outline |
350x560x600 mm |
| Travel |
350 x 560 mm |
| Weight |
12 Kgs |
|
|
|
| |
|
|
| Model |
STA-Z-003 |
| Outline |
600x100x600 mm |
| Travel |
300 mm |
| Weight |
12 Kgs |
|
|
|
| |
|
|
| Model |

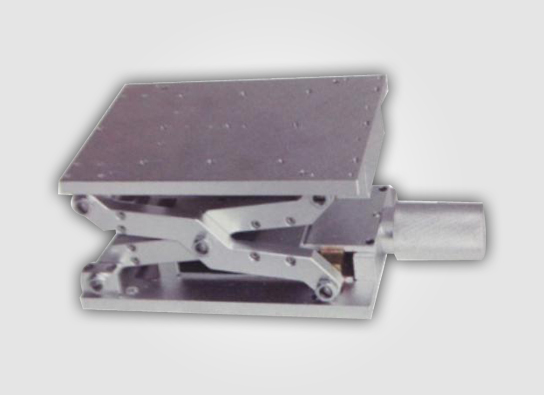

STA-ZM-001 |
| Application |
Single Dimensional |
| Dimensions |
160 x 90 x 60 mm |
| Size of Plate |
80 x 120 mm |
| Travel |
60 mm |
|
|
|
| |
|
|
| Model |

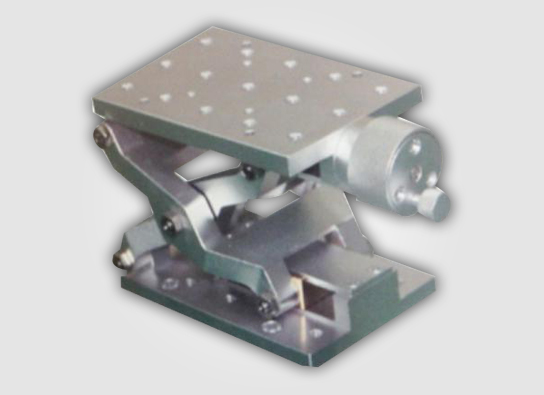

STA-ZM-002 |
| Application |
Single Dimensional |
| Dimensions |
260 x 150 x 70 mm |
| Size of Plate |
150 x 210 mm |
| Travel |
150 mm |
|
|
|
| |
|
|
| Model |

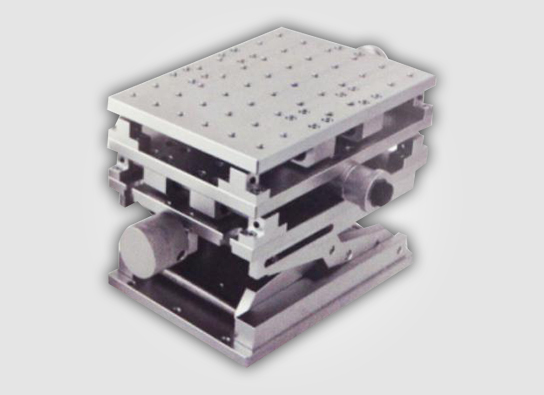

STA-ZXY-001 |
| Application |
Three Dimensional |
| Dimensions |
260 x 150 x 70 mm |
| Size of Plate |
150 x 210 mm |
| Travel |
150 x 80 x 80 mm |
|
|
|
| |
|
|
| Model |

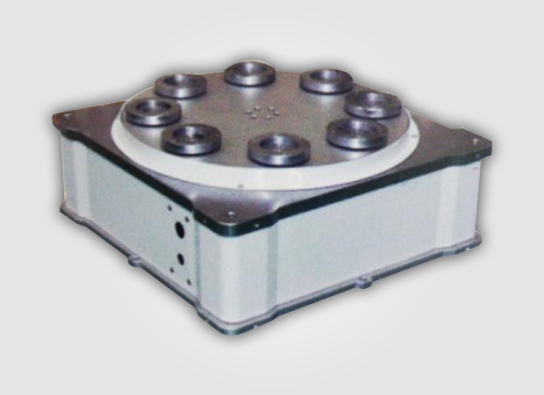

STA-RA-001 |
| Application |
4 - 8 Positions |
| Dimensions |
460 x 460 x 200 mm |
| Drive |
Step / Servo |
| Weight |
40 Kgs |
|
|
|
